uPVC
Sliding Systems

uPVC systems are designed for projects where comfort, energy efficiency, and low maintenance are just as important as aesthetics. Vento's uPVC collection combines multi-chamber profiles with quality hardware and glazing options to improve thermal insulation, reduce outside noise, and deliver reliable performance in changing weather conditions. Suitable for homes, apartments, and villas, these systems offer practical solutions for modern living.

Thermal Insulation

Multi-chamber profile design helps minimise heat transfer and maintain comfortable indoor temperatures throughout the year.

Low Maintenance

Corrosion-resistant uPVC profiles require minimal upkeep while retaining their appearance and functionality over time.

Our Systems

Choose The Right
uPVC Sliding System

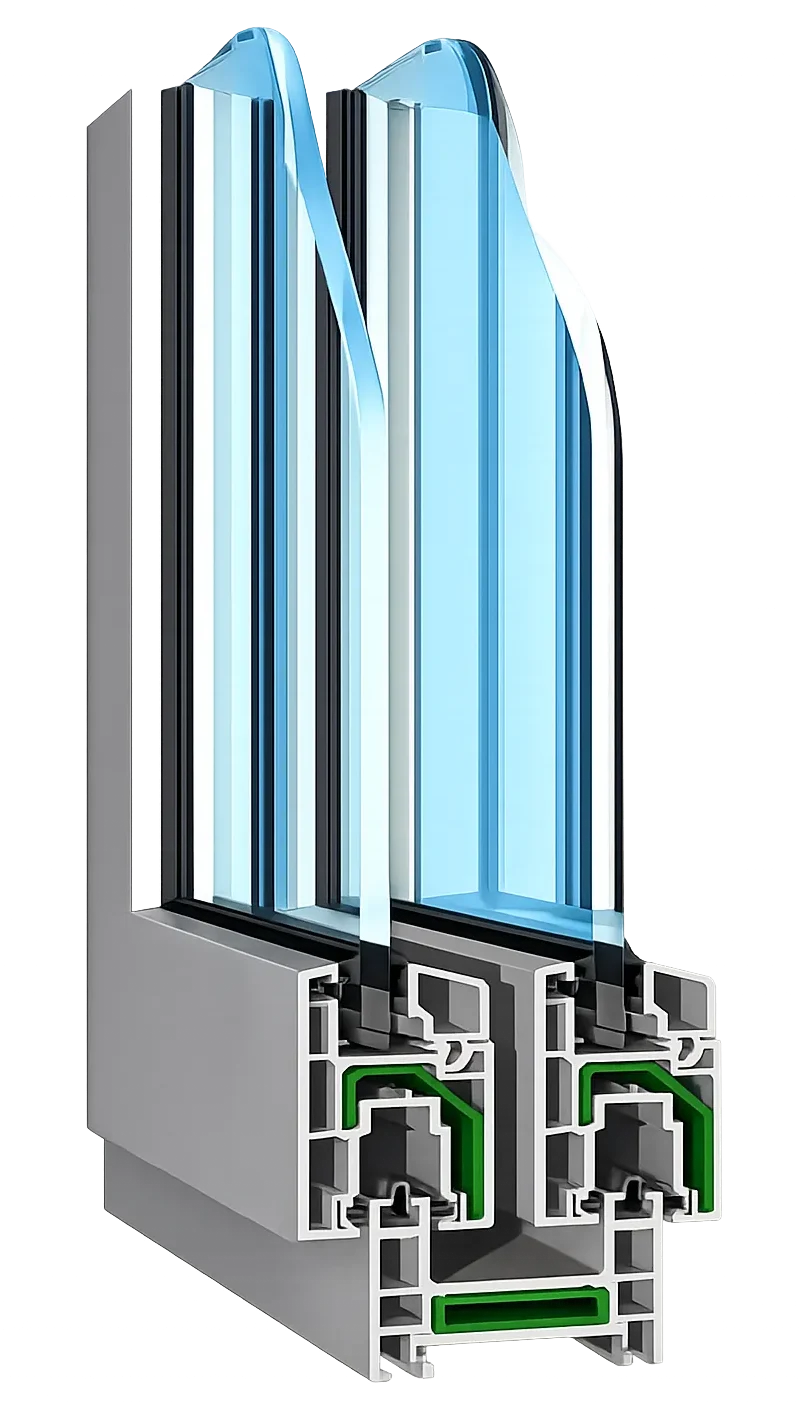

3 Chamber Profile

Construction Depth: 60 mm

  • Window
  • A system of the new generation: With choice of multitrack frames having depth of 60 mm, 74 mm, 92 mm and 108 mm.
  • Reliable security: Qualified product design offers genuine sash overlap of 8 mm, enhancing safety in windy / stormy weather conditions.
  • Wide variety: Numerous architectural elevations possible with the range of profiles and accessories.
  • Protection against insects Insect screen on various window types.

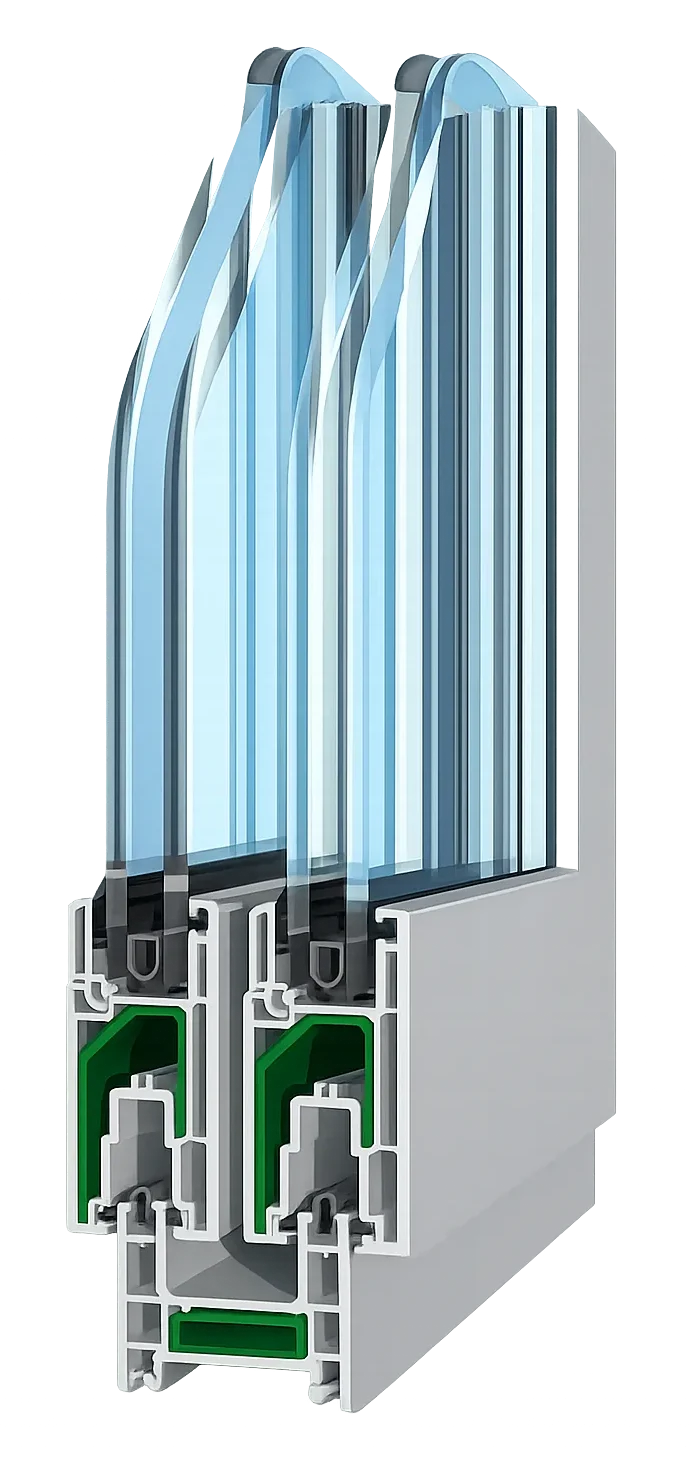

  • Door
  • Maximum stability: Large dimensioned and optimally designed steel offers better static stability.
  • Chamber strucutre: Large-dimensioned pre-chamber areas ensure high thermal stability and optimal drainage.
  • Easy to maintain & weather-resistant: Unique extrusion technology offers PVC profiles with highly compressed surface structure.
  • Colors: Choice of UV resistant and wide range of decor lamination.

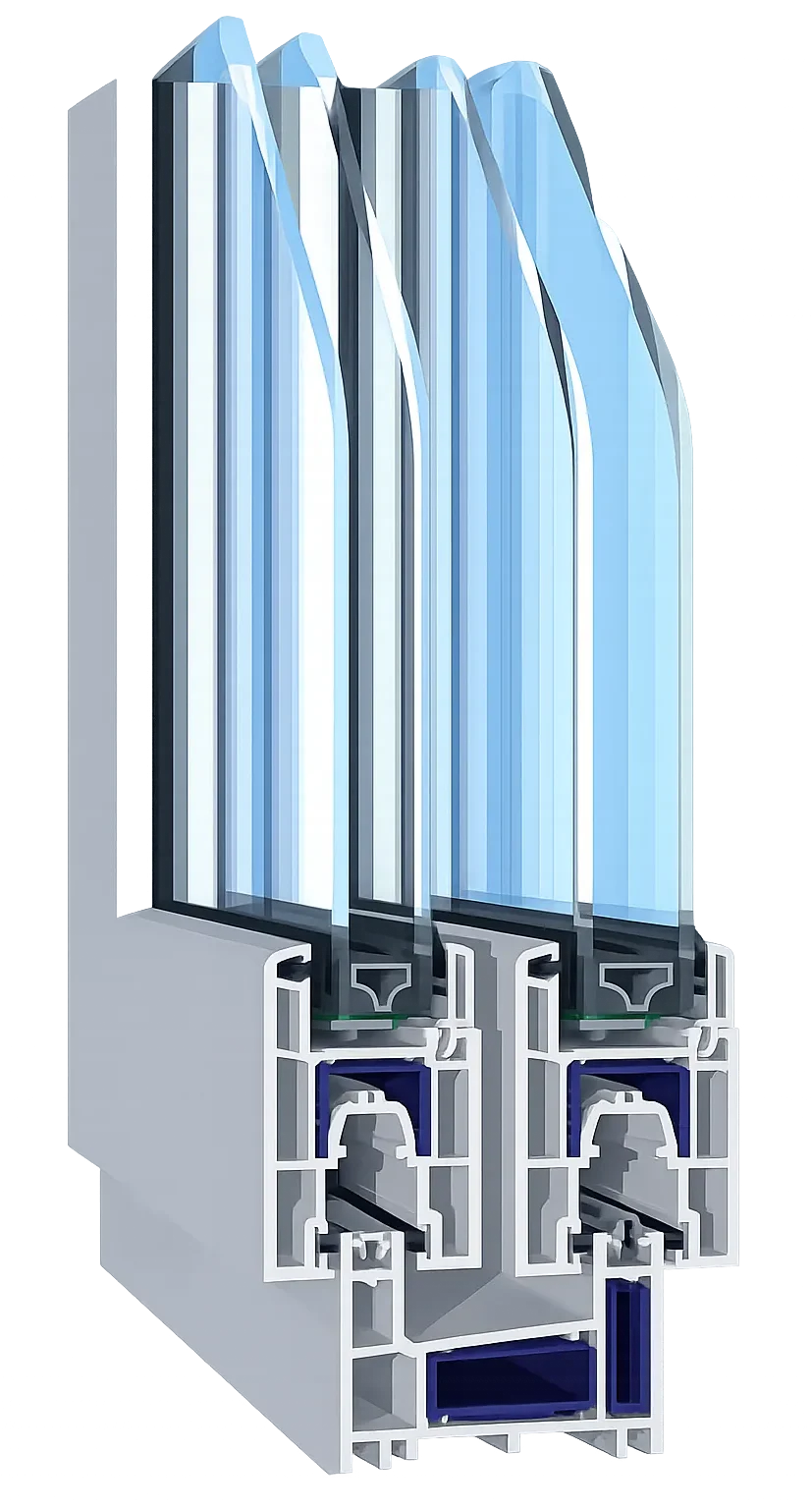

3 Chamber Profile

Construction Depth: 76 mm, 137 mm

  • Window
  • Most elegant system: Unique contoured profile design adds value and emerge with better optic. Easy to maintain features.
  • System focused on design and performance: Uniquely designed profile system yields higher functional results. Suitable for Villa, high-end residences.
  • Colors: Choice of UV resistant and wide range of decor lamination. Long usable life.
  • Seamless integration with door system: Easily integrate with sliding door system, barrier free tracks.

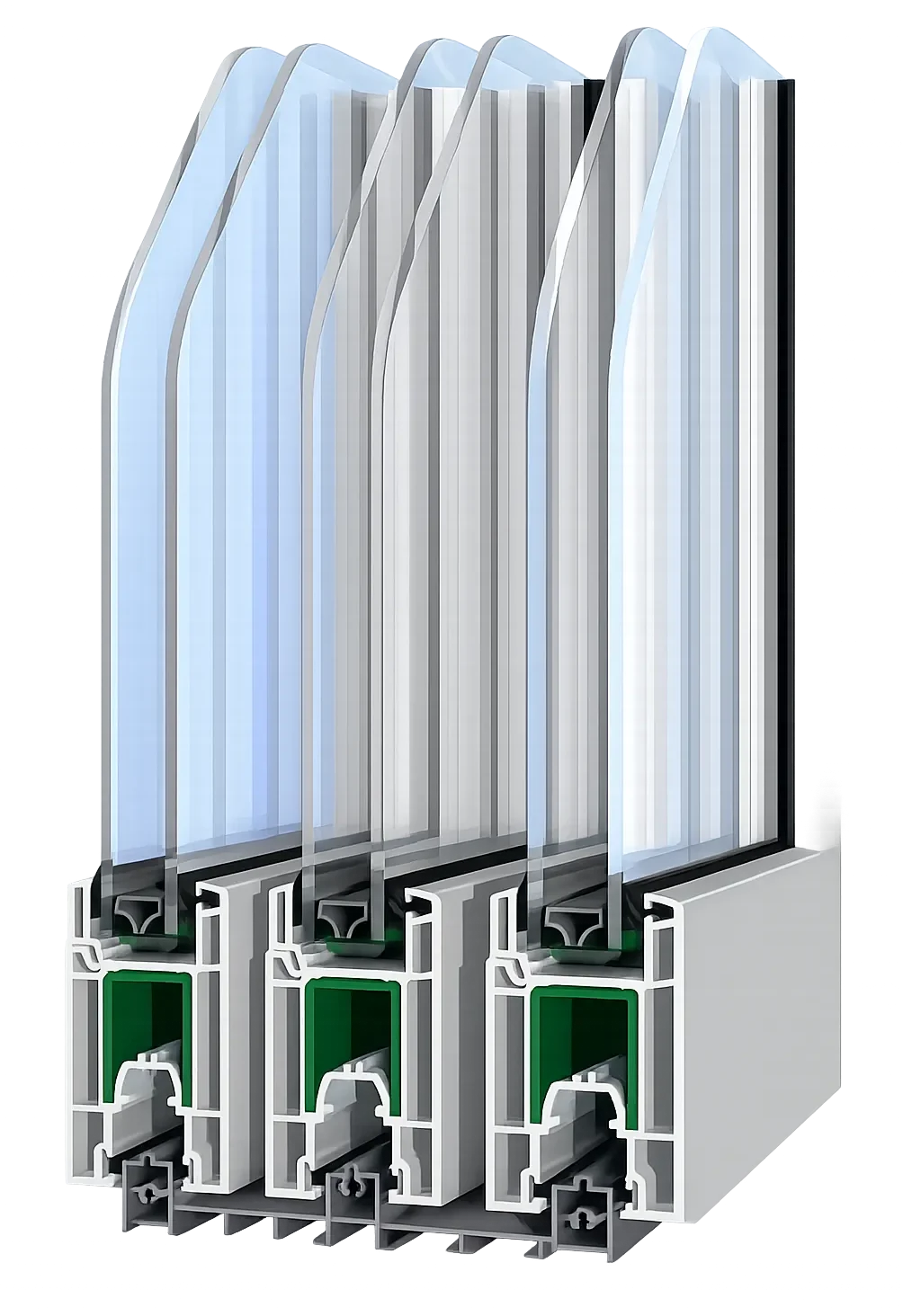

  • Door
  • High performance system: Larger sash sizes sustaining to higher wind resistance. Facilitate higher installation height.
  • Maximum weather resistant: Bigger chamber can house stronger steel making it more secure and stable door.
  • Contemporary design with modular system: Adaption of 'Barrier-free Tracks'. Concealed look yet smooth sliding function.
  • Reliable security: Adaptable to various multipoint locking system of various make. Higher security standards.

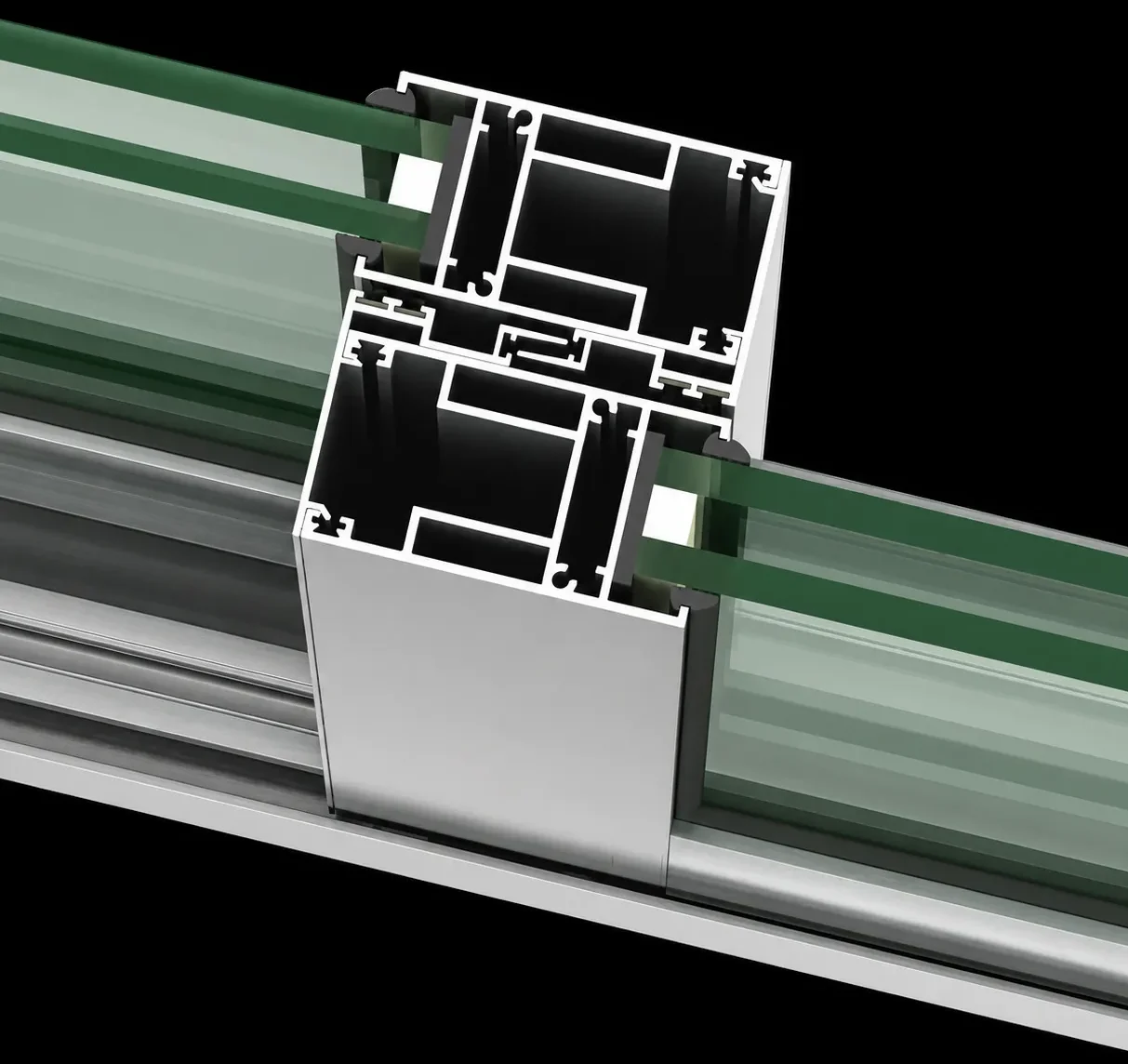

The Lift and Slide Windows system is designed for large sliding openings that require smooth operation, secure locking, and wider glazing compatibility. Featuring a dedicated lift-and-slide mechanism, the system combines slim sightlines with multipoint locking and supports glass thicknesses from 24 mm to 33 mm for contemporary residential and commercial projects.

  • System Highlights
  • Shutter Depth: 47 mm
  • Locking Type: Multipoint
  • Corner Details: 90 degree For Frame
    45 degree for Shutter
  • Sealing Overlap: 8 mm (Sealing with woolpile)
  • Glass Range: 24 mm to 33 mm
  • Sight Line with Shutter: 105 mm
  • Window Height (Max.): 3750 mm
  • Finish: Powder Coating / Wood / Anodised
  • Hardware & Woolpile: SCHLEGEL GIESSE

3 Chamber Profile

Construction Depth: 60 mm

  • Window
  • Energy Efficiency: Multiple chambered profiles offers protection against heat transfer. Material with excellent thermal insulation properties.
  • Reliable Sound Insulation: Multi chamber profiles, sealing gaskets and possibility of using range of glass options makes the window impenetrable for sound.
  • Optimal Protection against wind & weather:: High quality gaskets offers excellent insulation and weather protection.
  • Flexible & User-Friendly: Profile design with multiple window and door solutions limited to architectural imagination.
  • Door
  • Chamber Structure: Large-dimensioned pre-chamber areas ensure high thermal stability and bigger chamber houses the steel with better static values for bigger sized doors.
  • Generous Rebate Depth: Enables the use of wide range of single or double glazing glass units. It allows the use of specialized glazing up to 32 mm.
  • Generous Rebate Height: 20 mm glazing rebate height offered in all Salamander systems, complies to the highest norms from DIN standard for safety glazing practices.
  • Reliable Security: Designed to accept most modern safety locking systems.
